Powerline Line Capacitors Enable Power Factor Delivery

Powerlines are the backbone of our electrical grid, transmitting electricity over long distances from generation sites to end-users. AC (Alternating Current) and DC (Direct Current) are used in power transmission, each with their own advantages. AC power is predominantly used in most power grids due to its ease of voltage transformation using transformers.

• AC power is predominantly used in most power grids due to its ease of voltage transformation using transformers. This allows for efficient long-distance transmission at high voltages and subsequent step-down for local distribution. In the United States, AC transmission typically operates at voltages ranging from 115 kV to 765 kV.

• DC power transmission, known as HVDC (High Voltage Direct Current), is gaining popularity for specific applications. HVDC lines can transmit power over longer distances with lower losses than AC lines. They are beneficial for underwater cables, interconnecting asynchronous grids, and stabilizing power distribution networks.

New Challenges for Capacitors in Power Distribution

Capacitors face new challenges as power grids evolve to accommodate renewable energy sources, innovative grid technologies, and increasing power demands. These include the need for higher voltage ratings to handle modern high-voltage applications, cost reduction to achieve parity with existing energy storage technologies, standardization to promote consistency and interoperability, and the ability to handle more frequent and severe power fluctuations due to the integration of intermittent renewable energy sources. As power grids evolve to accommodate renewable energy sources, innovative grid technologies, and increasing power demands, capacitors face new challenges:

1. Higher Voltage Ratings - Capacitors need to handle higher voltages to match the requirements of modern high-voltage applications.
2. Cost Reduction -  Achieving cost parity with existing energy storage technologies is crucial for widespread adoption.
3. Standardization - Establishing industry standards for advanced capacitors will promote application consistency and interoperability.
4. Handling Power Fluctuations - With the integration of intermittent renewable energy sources, capacitors must manage more frequent and severe power fluctuations.

How Capacitors Deliver Power Factoring

Capacitors are crucial in power factor correction and are required for maintaining grid efficiency. They achieve this by providing a leading current that offsets the lagging current caused by inductive loads, storing and releasing energy to balance reactive power in the system, and reducing reactive power demand to lessen the burden on power supply and transmission lines.

• Providing Leading Current - Capacitors generate a leading current that offsets the lagging current caused by inductive loads, improving the overall power factor.

• Storing and Releasing Energy - Capacitors temporarily store and release electrical energy when needed, helping to balance the system's reactive power.

• Reducing Reactive Power Demand - By compensating for local reactive power, capacitors lessen the burden on the power supply and transmission lines.

Where Capacitors are Deployed on Powerlines

Capacitors are crucial in power factor correction and are required for maintaining grid efficiency. They achieve this by providing a leading current that offsets the lagging current caused by inductive loads, storing and releasing energy to balance reactive power in the system, and reducing reactive power demand to lessen the burden on power supply and transmission lines. Capacitors are strategically placed throughout the power distribution system:

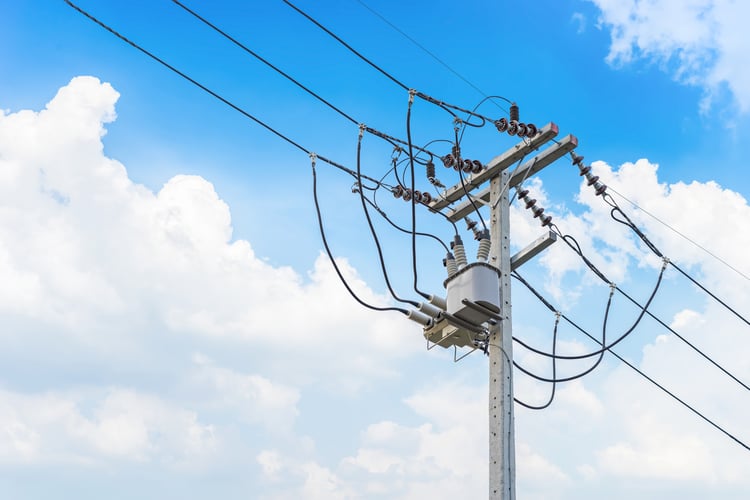

• Distribution Lines - Capacitors are often installed on utility poles or underground vaults near residential subdivisions.

• Substations - Many capacitors are placed in distribution substations to provide centralized power factor correction.

• Customer Facilities - Large commercial and industrial customers may install capacitors to improve their power factor and avoid utility penalties.

• Transmission Systems - Capacitor banks use transmission systems that use capacitor bank support and reactive power compensation.

Benefits of Capacitors for Powerlines

The use of capacitors in power systems offers several advantages. These include improved energy efficiency by reducing reactive power flow, cost savings through reduced electricity bills and avoided penalties, enhanced voltage regulation across the distribution network, increased system capacity for active power transmission, and an extended equipment lifespan due to lower current flow. The use of capacitors in power systems offers several advantages:

1. Improved Energy Efficiency - By reducing reactive power flow, capacitors decrease energy losses in the distribution system.

2. Cost Savings - Improved power factor reduces electricity bills and avoids penalties from utility companies.

3. Enhanced Voltage Regulation - Capacitors help maintain stable voltage levels across the distribution network.

4. Increased System Capacity - By reducing reactive power flow, more of the system's capacity can be used for active power transmission.

5. Extended Equipment Lifespan - Lower current flow reduces wear and tear on electrical equipment, extending its operational life.

How Next-Generation Capacitor Films Solve Capacitor Challenges

Advanced capacitor technologies, such as those developed by Peak, offer promising solutions to current challenges. Peak’s NanoPlex HDC films can store 2-4 times more energy, allowing for more compact and efficient capacitor designs. These advanced films enable capacitors that are two times smaller and lighter, facilitating easier installation and reducing infrastructure requirements. NanoPlex LDF provides 3-5 times longer lifetime and duty cycles, addressing the need for more reliable and long-lasting components in power systems. With support for temperatures up to 130°C, these new capacitor films can better withstand the harsh conditions often encountered in power distribution environments. By leveraging these advancements, power distribution systems can become more efficient, reliable, and capable of meeting the growing demands of our increasingly electrified world. Advanced capacitor technologies, such as those developed by Peak Nano, offer promising solutions to current challenges:

• Higher Energy Density - NanoPlex HDC films can store 2-4 times more energy, allowing for more compact and efficient capacitor designs.
• Reduced Size and Weight - These advanced films enable capacitors that are two times smaller and lighter, facilitating easier installation and reducing infrastructure requirements.
• Improved Durability - NanoPlex LDF provides 3-5 times longer lifetimes and duty cycles, addressing the need for more reliable and long-lasting components in power systems.
• Enhanced Temperature Tolerance - With support for temperatures up to 130°C, these new capacitor films can better withstand the harsh conditions often encountered in power distribution environments.

By leveraging these advancements, power distribution systems can become more efficient, reliable, and capable of meeting the growing demands of our increasingly electrified world.
