NanoPlex - Stepping Up and Down Power Transmission

Step-up and step-down power transmission systems are the backbone of our modern electrical grid, enabling efficient long-distance electricity transmission. The significance of these systems, primarily powered by transformers, cannot be overstated. Capacitors, too, play a crucial role in these systems. Let's look at the vital roles of transformers and capacitors in power transmission and the dynamic evolution of this technology.

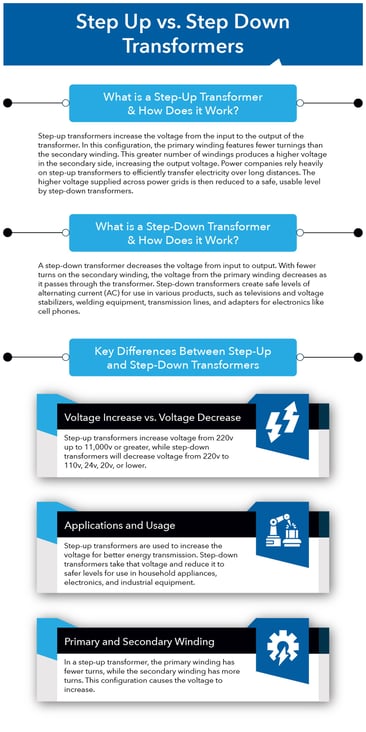

What is Step-Up and Step-Down Power Transmission?

Step-up and step-down power transmission refers to increasing or decreasing voltage levels in electrical power systems. Step-up transformers increase voltage for long-distance transmission, while step-down transformers reduce voltage for local distribution and end-use.

Step-Up Transformers

A step-up transformer increases the voltage from its primary (input) to its secondary (output) winding. Key characteristics include:

• The secondary winding has more turns than the primary winding.

• It increases voltage while decreasing current.

• The primary winding uses thicker wire to handle higher currents, while the secondary uses thinner wire.

• They are commonly used in power generation and transmission to increase voltage for efficient long-distance power transfer.

Step-Down Transformers

A step-down transformer does the opposite, reducing the voltage from its primary to secondary winding. Its features include:

• The primary winding has more turns than the secondary winding.

• It decreases voltage while increasing current.

• The secondary winding uses thicker wire to handle the higher current output.

• They are often used in power distribution systems to reduce high transmission voltages to levels suitable for consumer use.

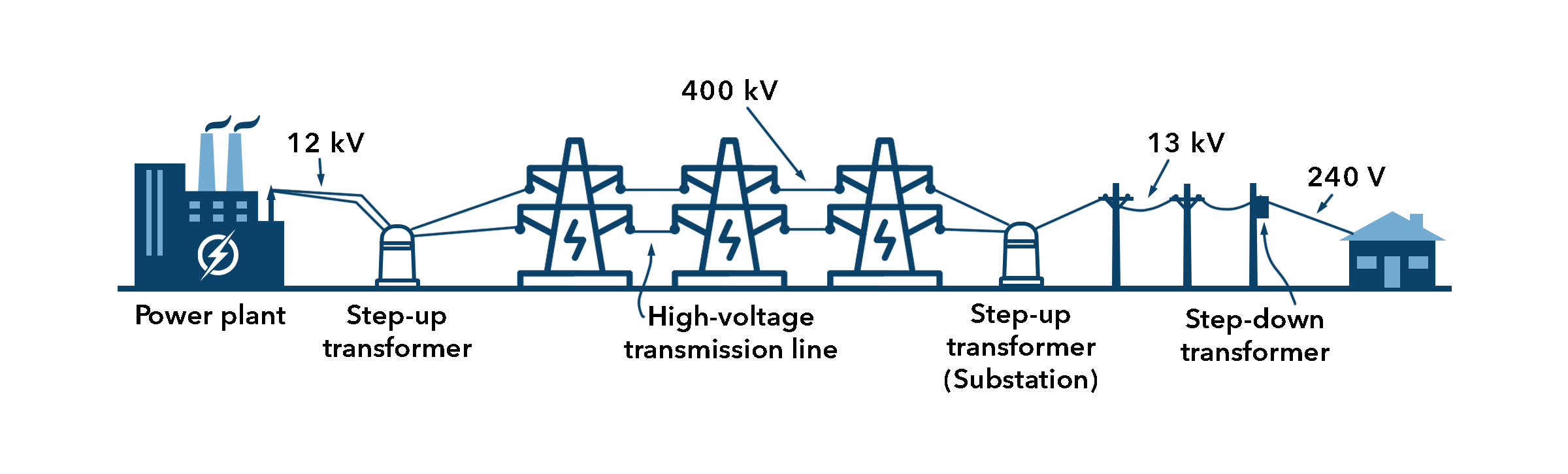

The basic principle behind this system is that higher voltages allow for more efficient long-distance power transmission by reducing current and minimizing power losses. Once the electricity reaches its destination, the voltage decreases to safer levels for consumer use.

Current Challenges for Step-Up and Step-Down Transmission

• Efficiency Losses in Transformers: While highly efficient, transformers still experience energy losses during operation. These losses can be categorized into two main types:

  • Core (iron) losses / Hysteresis loss: Energy lost due to the repeated magnetization and demagnetization of the core material.

  • Eddy current loss: Caused by circulating currents induced in the core by the changing magnetic field.

• Copper Losses (I²R Losses): Occurs in both primary and secondary windings due to the resistance of the copper wire. These losses generate heat, reducing overall efficiency. While modern transformers can achieve efficiencies of 95-98.5%, even small losses can be significant in large-scale power systems.

• Voltage Regulation Issues: Voltage regulation refers to the ability of a transformer to maintain a constant voltage level at its output despite variations in load or input voltage. Challenges include:

  • Load variations: Changes in demand can cause voltage fluctuations.

  • Line impedance: Long transmission lines can lead to voltage drops.

  • Power factor: Low power factor loads can affect voltage regulation.

  • Proper voltage regulation is crucial for the stability and reliability of the power system and for protecting end-user equipment.

• Harmonics and Power Quality Concerns: Harmonics are distortions in the sinusoidal waveform of voltage or current, often caused by non-linear loads. They can lead to several issues in transformer systems:

  • Increased losses: Harmonics can increase both core and copper losses in transformers.

  • Overheating: Higher harmonic content can cause excessive heating in transformer windings and cores.

  • Reduced capacity: Harmonics can effectively mitigate the power-handling capacity of transformers.

  • Resonance: This can lead to overvoltages and overcurrents in the system.

  • Addressing harmonics often requires specialized filtering equipment or design considerations in the transformer.

• Integration of Renewable Energy Sources: The increasing adoption of renewable energy sources poses several challenges for transformer systems:

  • Variability: Renewable sources like solar and wind have variable output, requiring transformers to handle frequent changes in power flow.

  • Bidirectional power flow: Grid-connected renewable systems may feed power back into the grid, requiring transformers to handle reverse power flow.

  • Harmonics: Inverters in renewable energy systems can introduce harmonics into the grid.

  • Voltage fluctuations: Rapid changes in renewable energy output can cause voltage stability issues.

  • Addressing these challenges requires advanced transformer designs, smart grid technologies, and improved control systems to ensure stable and efficient power transmission and distribution.

These challenges underscore the continuous need for innovation and improvement in transformer technology. The evolving demands of modern power systems necessitate a proactive approach to enhancing transformer efficiency and reliability. This ongoing quest for improvement is a testament to the power industry's dynamism and resilience.

The Role of Capacitors

Capacitors play several vital roles in enhancing the efficiency of step-up and step-down transformer systems:

• Power Factor Correction: Capacitors are commonly used for power factor correction in transformer systems. By adding capacitors to the AC input leads of a transformer, the power factor can be improved, making the power transmission more efficient. This allows a higher percentage of real power to be transferred from the source to the load.

• Voltage Regulation: Capacitor banks can help stabilize voltage levels in transmission and distribution systems. This is particularly important for maintaining consistent voltage output from transformers.

• Harmonic Filtering: When combined with inductors, capacitors can form harmonic filters to mitigate harmonic distortion in power systems, helping improve overall power quality.

• Energy Storage: While not their primary role, capacitors can provide short-term energy storage to help stabilize power flow in transformer systems.

• Reactive Power Compensation: Capacitors can provide reactive power compensation, which helps reduce losses in the transmission system.

• Inrush Current Mitigation: Capacitors can help mitigate inrush currents when energizing transformers, which can be up to 16x greater when reverse-feeding transformers.

• Efficiency Improvement: By correcting power factors and providing reactive power compensation, capacitors help reduce overall system losses, thereby improving the efficiency of step-up and step-down transformer systems.

It's important to note that while capacitors can significantly enhance transformer efficiency, their use must be carefully designed and implemented to avoid potential issues such as voltage instability or resonance problems. The specific capacitor values and configurations will depend on the transformer system's operating conditions.

BOPP Film Capacitors: Current Limits and Future Prospects

BOPP (Biaxially Oriented Polypropylene) films have several limitations that may impact their future use in hybrid power factoring systems:

• Temperature limitations: BOPP films have an upper operating temperature limit below 105°C due to sharply increased electrical conduction loss at high temperatures. This restricts their use in high-temperature applications.

• Structural homogeneity challenges:  BOPP films still face issues with localized weak points caused by silica agglomerates, which affect their structural homogeneity and dielectric breakdown performance under extreme field stress.

• Limited permittivity enhancement: Increasing the composite permittivity of BOPP films requires high-volume fraction fillers. This can lead to unfavorable electric field enhancement, increased breakdown probability, high interfacial polarization loss, and poor tensile strength.

• Energy density limitations: While BOPP films are widely used in capacitors, there is a growing demand for materials with higher energy density for advanced applications like electric vehicles and power grids.

• Environmental and regulatory challenges: Stricter safety and environmental protection regulations may require BOPP manufacturers to invest in higher-quality materials and manufacturing processes, potentially increasing production costs.

• Competition from alternative technologies: Developing hybrid power factoring systems using advanced components like Static Var Generators (SVG) and thyristor-switched capacitors may offer superior performance in some applications.

While BOPP films remain essential in many applications, these limitations suggest that future hybrid power factoring systems may increasingly rely on more advanced materials and technologies to meet growing performance demands.

NanoPlex Replaces BOPP for Step-Up and Step-Down Transmission

The power grid transforms significantly by integrating renewable energy sources, energy storage systems, and smart grid technologies. The impending 79% surge in power demand, driven by AI, EVs, expanding populations, and economic growth, is expected to outpace production, posing a substantial challenge.

This shift significantly transforms the requirements and technologies for high-energy capacitors used throughout power systems.

• The trend towards higher switching frequencies in power electronics is a significant driver of capacitor technology development. As systems move to hundreds of kHz or even MHz frequencies, the criticality of capacitor performance at high frequencies is underscored. This shift enables more compact and efficient power conversion systems and necessitates more robust designs and materials to cope with the increased stress on capacitors.

• Power Factor Correction - The growth of renewable energy is creating new challenges for power factor correction and harmonic filtering. Solar and wind farms introduce more reactive power and harmonics into the grid, requiring advanced compensation techniques. Static VAR compensators (SVCs) and static synchronous compensators (STATCOMs) rely heavily on high-power capacitors to support reactive power. As a result, film and electrolytic capacitors optimized for these applications are seeing strong demand growth. New hybrid active filter designs combining passive capacitor banks with active switching elements are gaining traction. These offer more flexible and responsive power factor correction for grids with high renewable penetration.

• Power Grid Expansion - The global expansion and modernization of power grids worldwide are significant drivers of the high-energy capacitor market. Utilities invest heavily in new transmission and distribution infrastructure, creating demand for capacitors in various applications. High-voltage DC (HVDC) transmission systems are being deployed to move large amounts of renewable energy over long distances efficiently. These systems require specialized DC links and smoothing capacitors capable of handling extreme voltages and currents.

• Smart Grid Modernization - AI, IoT, and analytics are changing how the grid works, how energy is traded, and the need for more granular control over power distribution. Innovative grid initiatives are driving the adoption of more sophisticated monitoring and control systems throughout the distribution network.

• Improved Grid Stability: Hybrid systems' advanced control and rapid response help maintain grid stability despite fluctuating renewable energy sources.

• Increased Energy Efficiency: These systems help reduce energy losses across the grid by providing more precise and responsive power factor correction.

• Cost Savings: Modern systems' modular nature allows for more cost-effective upgrades and expansions.

• Enhanced Power Quality: The focus on harmonic mitigation is leading to overall improvements in power quality, benefiting both utilities and end-users.

• Greater Flexibility: Integrating intelligent grid systems allows for more dynamic and adaptive power factor correction strategies.

NanoPlex for Step-Up and Step-Down Power Transmission

NanoPlex is a family of nanolayered dielectric capacitor films meticulously designed to meet and exceed the demands of the AI-enabled power grid, high-frequency switching, hybrid power factoring, mobile power distribution, and igniting fusion energy systems.

Next-generation step-up and step-down power transmission capacitors must integrate and support diverse energy sources while providing predictable power delivery and meeting grid reliability requirements (voltage stability, phase stability, etc.). NanoPlex-based capacitors, with their advanced technology, can be leveraged by leading power suppliers, capacitor designers, and mobile energy deployments to ensure that the power delivered meets the needs of homes, industries, and other energy consumers. NanoPlex-based capacitors can help scale and stabilize power delivery in four ways:

1. Hybrid Energy Factor Correction - NanoPlex-based capacitors improve power factor correction across hybrid (wind, hydro, solar) and conventional energy creation sources to optimize step-up and step-down transmission. We enhance energy transfer efficiency by mitigating the phase difference between voltage and current.

2. Energy Storage and Stabilization - NanoPlex-based capacitors assist in storing and discharging energy efficiently. In transmission and distribution, NanoPlex-based capacitors help manage energy fluctuations, stabilizing the voltage and ensuring a consistent power supply to the grid.

3. Mobile Power Distribution - Mobile trucks equipped with NanoPlex-based capacitors can provide immediate voltage support to substations during maintenance, emergencies, and other temporary events. Capacitors stabilize voltage, ensuring the substation receives a consistent and reliable power supply.

4. Step-Up and Step-Down Optimization - NanoPlex-based capacitors can optimize step-up power transmission to compensate for inductive issues, reducing reactive power and enhancing voltage levels. In step-down environments, we can manage excess voltage, stabilize voltage levels, and ensure the electricity supplied meets the required parameters.

NanoPlex for Modern Step-Up and Step-Down Power Transmission

The high-energy capacitor market for the power grid is evolving rapidly to meet the challenges of renewable energy integration, smart grid deployment, and power quality management. Key trends include higher energy densities, improved temperature tolerance, longer lifetimes, and enhanced connectivity.

As switching frequencies increase and duty cycles become more demanding, capacitor designs adapt with lower parasitics and more robust constructions. New dielectric materials and manufacturing techniques enable capacitors to meet the stringent requirements of modern grid infrastructure.
