From Darkness to Light: How Modern Night Vision Goggles Work

From Darkness to Light: How Modern Night Vision Goggles Work

Night vision technology has come a long way since its early military applications. Today's advanced night vision goggles allow users to see clearly in near-total darkness, opening up a world of possibilities for both professional and recreational use. But how were these high-tech devices created, and how exactly do they work? Let's break it down in simple terms.

A Brief History

The first military night vision devices were developed by the German Army in the late 1930s and saw use during World War II. These early "Generation 0" devices relied on active infrared illumination, and were bulky and hard to use. The technology evolved significantly, with the introduction of "Generation 1" during the Vietnam War in the 1960s. These were passive devices that amplified ambient light without the need for an infrared illuminator.

Night vision technology has continued to advanced through several generations, each offering significant improvements in performance, clarity, and usability. Gen 2 devices, introduced in the 1970s, featured micro-channel plates that greatly enhanced image brightness and resolution. The 1980s saw Gen 3 systems that utilized gallium arsenide photocathodes to further improve image quality and light amplification.

Today's advanced night vision goggles can amplify light by 50,000 times or more, providing clear images in near-total darkness. Ongoing innovations continue to enhance field of view, reduce weight, and integrate additional features like thermal imaging and augmented reality displays.

The Basics of Night Vision

At its core, night vision technology works by amplifying tiny amounts of existing light, including infrared light that's invisible to the naked eye, and creating an enhanced image visible to the human eye.

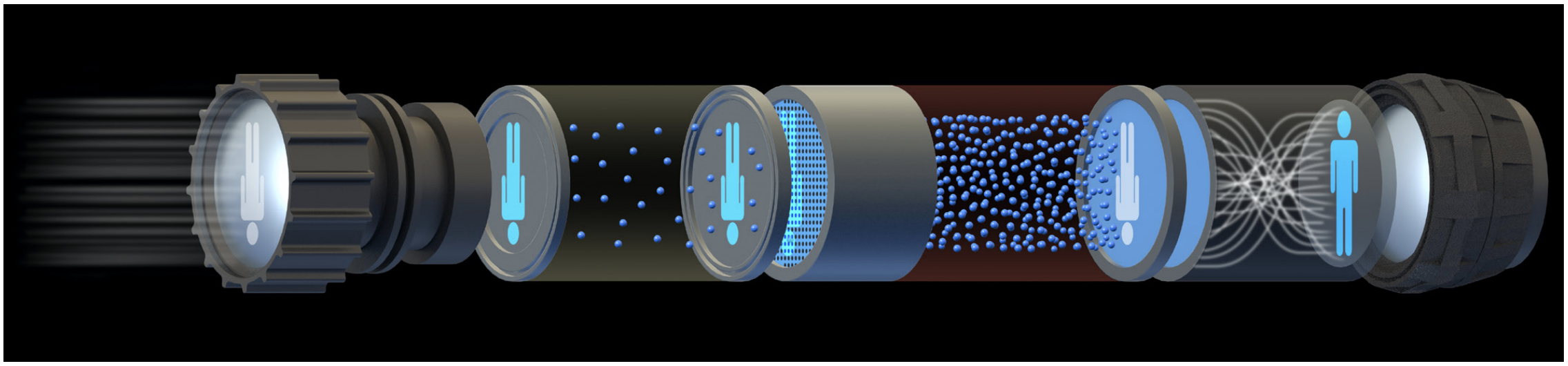

Here is an overview of how modern night vision googles work:

  1. Capture Ambient Light - Photons from ambient light (moonlight, starlight, and other sources) enter the night vision device. The optic objective at the front of the night vision device inverts the image and directs the light photons to the image intensifier (I2) tube which hits a photocathode plate.

  2. Photocathode Converts Photons to Electrons - When the photons hit the photocathode, it converts the photons into electrons with the exact positioning of the photon from the source image. The electrons are released from the back of the photocathode tube into an electrically charged vacuum, accelerating them toward the microchannel plate.

  3. Microchannel Plate Intensifies Image - As accelerated electrons move toward the microchannel plate, they enter slightly angled tubes (at angles of 4-5°) within the plate, forcing them into the side of the tube coated with gallium arsenide. This process adds more electrons to the image pattern, which will cause the image to become up to 1,000 times brighter than the ambient light. As the larger image-patterned electron clusters exit the microchannel plate, they accelerate again toward the phosphor screen (white or green).

  4. Intensified Image Converted Back to Visible Photons - The accelerated image-patterned electron clusters hit the phosphor screen and convert back into photons so warfighters can see the intensified image. On the backside of the phosphor screen, over 20 million optic fibers again invert the image, making it visible and legible to the human eye.

  5. Real Time Visibility - The intensified image is visible to the warfighter in real-time so they can make the right decisions in the moment to accomplish their mission.

Screenshot 2024-06-28 at 11.35.34 AM

The Role of Lenses in Night Vision

While all components play crucial roles, the lenses in night vision goggles are particularly important. They determine the field of view, image clarity, and overall performance of the device. Traditionally, night vision goggles used glass lenses, but recent advancements have led to new materials that give significant improvements when combined with or replacing glass lenses.

Moving Beyond Traditional Glass Lenses

Companies like Peak are pioneering the use of advanced materials (like our NanoPlex metamaterial) and designs for night vision lenses. By moving away from solely conventional glass, these innovations offer several key benefits:

  • Wider Field of View: New lens designs can provide a much broader field of view, allowing users to see more of their surroundings without moving their head.

  • Improved Clarity: Advanced materials and coatings can reduce distortion and increase contrast, resulting in sharper, more detailed images.

  • Enhanced Light Transmission: Specialized coatings and materials can improve the amount of light that reaches the image intensifier tube, boosting overall performance.

  • Reduced Weight: Non-glass lenses are often lighter, making the goggles more comfortable to wear for extended periods.

  • Increased Durability: Some advanced materials are more resistant to scratches and impacts compared to traditional glass.

The Impact on User Experience

These lens improvements provide a significantly better experience for night vision users. Whether you're a military professional, law enforcement officer, or outdoor enthusiast, a wider field of view and improved clarity can make a huge difference in situational awareness and overall effectiveness.

For example, a wider field of view allows soldiers to better monitor their surroundings, potentially spotting threats earlier. Lighter lenses means an overall lighter system, allowing for longer periods of use with less neck torque. Wildlife observers can track animals more easily without constantly repositioning their goggles. And search and rescue teams can cover larger areas more efficiently when searching for missing persons.

The Future of Night Vision

As companies like Peak continue to innovate in lens technology and other aspects of night vision, and with the rise of AI, we can expect even more impressive capabilities in the future. From further improvements in image quality to integration with augmented reality displays, the possibilities are exciting.

While night vision goggles may seem like something out of a spy movie, they're very real and constantly evolving. By understanding the basics of how they work – especially the crucial role of advanced lens technology – we can better appreciate these remarkable devices that allow us to see in the dark.
