High-Frequency Switching is Heating Up Hybrid Power Factor Correction

The Rise of High-Frequency Switching

The power electronics industry is undergoing a significant shift in how power factor correction (PFC) is implemented, moving away from traditional inductor-based designs towards high-frequency switching topologies. The need for more compact, efficient, cost-effective power conversion solutions across various applications drives this trend. This article will explore the reasons behind this transition, the benefits and challenges of high-frequency switching (HFS) PFC, and what it means for the future of power electronics.

Traditional Power Factor Correction vs. High-Frequency Switching

Traditionally, PFC has relied heavily on large inductors to shape the input current waveform and improve power quality. While effective, these inductor-based designs have several drawbacks:

• Large size and weight due to bulky magnetic components

• Limited power density

• Relatively low efficiency, especially at light loads

• Higher material costs

• Loud hum

In contrast, high-frequency switching PFC topologies aim to overcome these limitations by operating at much higher frequencies - typically in the hundreds of kHz to MHz range. This allows for dramatic reductions in the size of magnetic and capacitive components while improving efficiency and performance.

Drivers of High-Frequency Switching

Several factors are accelerating the adoption of high-frequency switching for PFC:

• Demand for Higher Power Density - As electronic devices continue to shrink while demanding more power, there is immense pressure to increase the power density of power supplies. High-frequency operation enables the use of much smaller passive components, allowing for more compact designs.

• Efficiency Improvements - While switching losses increase at higher frequencies, advances in semiconductor technology and circuit topologies have helped mitigate this issue. Modern high-frequency PFC designs can achieve excellent efficiency across a wide load range.

• Cost Reduction - Although high-frequency designs may require more sophisticated control and higher-performance components, the overall cost of materials can be lower due to the reduced size and number of passive components necessary.

• Weight Reduction - HFS systems are also much lighter than large inducers, which makes them easier to install, service, and maintain.

• Better Dynamic Response - Higher switching frequencies allow for faster control loops and improved transient response, which are critical in many applications, such as LED drivers and battery chargers.

• Regulatory Pressures - Increasingly stringent efficiency and power quality regulations are pushing manufacturers to explore more advanced PFC solutions that meet these requirements while remaining cost-competitive.

• Energy Market Exchanges - HFS will enable finer control over power sales, which will grow revenues and maximize the ROI for power generation organizations.

Benefits of High-Frequency Switching Power Factor Correction

The transition to HFS PFC brings several significant advantages, offering a promising future for power electronics:

• Miniaturization - By operating at frequencies of 100 kHz and above, the size of inductors and capacitors can be dramatically reduced. HFS enables much more compact power supply designs, crucial for space-constrained applications like mobile devices, automotive systems, and industrial equipment.

• Improved Efficiency - While switching losses increase at higher frequencies, modern semiconductor devices and resonant switching techniques can help mitigate this issue. High-frequency PFC designs can achieve excellent efficiency, especially at light loads where traditional designs often struggle.

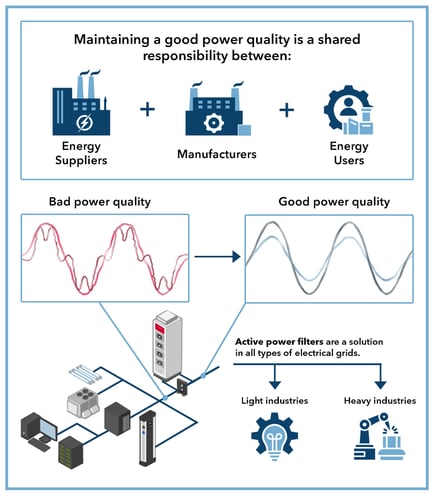

• Better Power Quality - Higher switching frequencies push harmonic content further away from the fundamental, making filtering easier. HFS can result in lower total harmonic distortion (THD) and better overall power quality.

• Faster Transient Response - The higher bandwidth afforded by increased switching frequency allows for more responsive control loops, which improves the ability to handle rapid load changes and line transients.

• Reduced Acoustic Noise - Operating above the audible frequency range eliminates the annoying transformer hum often associated with lower-frequency designs.

Challenges and Considerations

While the benefits are compelling, there are crackdown challenges when implementing high-frequency switching PFC. Understanding these challenges is critical to successful adoption:

• EMI Management - Higher switching frequencies can exacerbate electromagnetic interference (EMI). Careful PCB layout, component selection, and filtering techniques are critical to meeting regulatory EMC requirements.

• Thermal Management - Increased switching frequency can lead to higher losses in semiconductor devices, capacitors, and magnetic components. Effective thermal design and component selection are essential to ensure reliability.

• Control Complexity - High-frequency operation requires more sophisticated control algorithms and faster processing to maintain stability and performance. This may necessitate more advanced microcontrollers or dedicated PFC controller ICs.

• Component Selection - Not all components are suitable for high-frequency operation. Careful selection of semiconductors, magnetics, and capacitors is necessary to ensure they can handle the increased stress and maintain performance at elevated frequencies.

• Cost Considerations - While the overall bill of materials (BOM) cost may be reduced, the individual component costs for high-frequency capable devices may be higher. Designers must carefully balance performance and cost to achieve the optimal solution.

Enabling Technologies

Several critical technological advancements are making high-frequency switching PFC more viable. These include wide bandgap semiconductors, advanced magnetic materials, digital control, and resonant and soft-switching topologies. Understanding these enabling technologies is critical to harnessing the full potential of high-frequency switching PFC:

• Wide Bandgap Semiconductors - Silicon carbide (SiC) and gallium nitride (GaN) devices offer superior switching performance and lower losses than traditional silicon metal- oxide-semiconductor field-effect transistors (MOSFETs), enabling efficient operation at much higher frequencies.

• Advanced Magnetic Materials - New core materials and winding techniques allow for the creation of compact, low-loss inductors and transformers capable of operating efficiently at high frequencies.

• Digital Control - Powerful and cost-effective microcontrollers and digital signal processors (DSPs) enable the implementation of sophisticated control algorithms necessary for stable high-frequency operation.

• Resonant and Soft-Switching Topologies - Circuit topologies that reduce switching losses, such as LLC resonant converters and bridgeless totem pole PFCs, are becoming more prevalent in high-frequency designs.

• High-Temperature Capacitors - HFS drive up the operating temperature of environments as high as 150℃, which most BOPP (Biaxially Oriented Polypropylene) based capacitors cannot support.

• Peak’s NanoPlex LDF was designed to address the new thermal and lifecycle demands of high-frequency switching, overcoming the limitations of the current generation of BOPP-based capacitors. It provides 3-5x longer lifecycles to lower operation costs, provides faster charge/discharge to support HFS, and supports temperatures up to 150℃.

Application Areas

High-frequency switching PFC is finding its way into a wide range of applications:

• Electric Vehicle Charging - High-frequency PFC techniques can help onboard and offboard EV chargers achieve higher power density and efficiency.

• Renewable Energy - Solar inverters and wind power converters will benefit from the improved efficiency and power quality offered by high-frequency PFCs.

• Data Centers - The push for higher efficiency and power density in server power supplies is driving the adoption of high-frequency PFC in data center applications.

Future Outlook

The trend towards high-frequency switching in PFC will likely continue and accelerate in the coming years. Several factors will shape this evolution:

• Continued Semiconductor Advancements - Ongoing improvements in wide bandgap semiconductors will further push the frequency envelope, enabling multi-MHz operation in practical designs.

• Integration and Modularization - Increased integration of PFC functionality into system-on-chip (SoC) solutions and the development of modular power blocks will simplify design and reduce time to market.

• Advanced Control Techniques - Machine learning and artificial intelligence may be leveraged to optimize PFC performance in real-time, adapting to changing conditions and loads.

• Standardization Efforts - Industry collaborations to standardize high-frequency PFC architectures and interfaces could accelerate adoption and reduce design complexity.

Conclusion

The shift from traditional inductor-based designs to high-frequency switching topologies represents a significant evolution in PFC technology. This trend is reshaping the power electronics landscape across various applications, driven by the demands for higher power density, improved efficiency, and reduced costs.

While challenges remain in areas like EMI management and thermal design, the benefits of high-frequency switching PFC are compelling. As enabling technologies mature, we expect to see even more innovative and high-performance PFC solutions emerge in the coming years. The era of high-frequency switching PFC has arrived, and it promises to deliver smaller, more efficient, and more capable power systems for the technologies of tomorrow.
